A microelectronic device on an optical reflector generates 4 types of aiming marks. Manual adjustment of the illumination brightness of the sighting mark (16 gradations). The set brightness type and level are stored in the "memory". It has high durability and is designed for firing from smoothbore and rifled weapons with powerful cartridges, including 12-gauge. Operational discrete adjustment of aiming angles and lateral corrections. Lightweight, impact-resistant, sealed housing eliminates moisture and dust ingress. It is easily and quickly installed on the standard weapon bar using a standard clamping device.

Image Clarity:

Reticle Type	Second Focal Plane		Reticles	1.8 MOA Dot, Chevron, Chevron w/ Dot, T-Bar
Illuminated	Yes		Illumination Settings	16
Optical Transmission Coefficient	0.6		Eye Relief	Unlimited
Adjustable Objective	No		Side Focus	No
Parallax	Parallax Free

Image Adjustment:

Magnification Min	1x		Elevation Turret Style	Capped
Elevation Adjustment Graduation (mrad)	0.31		Max Elevation Adjustment (mrad)	4.34
Windage Turret Style	Capped		Windage Adjustment Graduation (mrad)	0.31
Total Windage Adjustment (mrad)	4.34

Utility:

Zero Stop	No		Micro Adjust Zero Setting	No
External Rotation Indicator	Yes		Locking Dial	No
Locking Illumination	No		Auto-Shutoff	Yes

Physical:

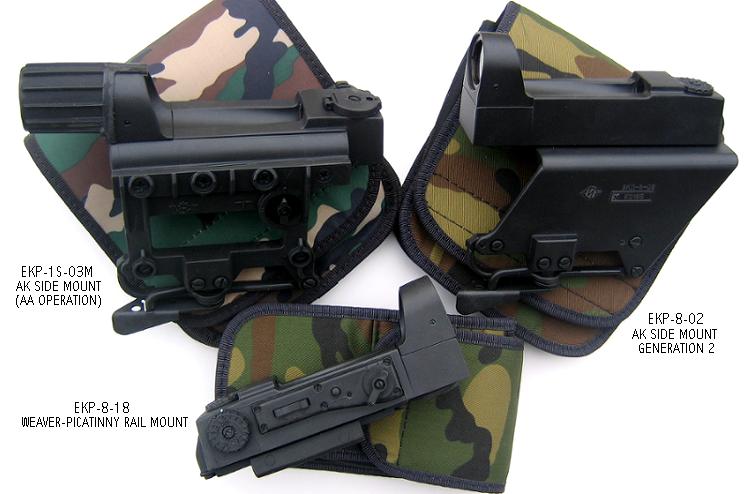

Mount Type	QD Bracket for Type 81 Side Mount; AK Side Mount		Material	Aluminum Alloy, Steel
Finish	Non-reflective Flat Black		Weight (g)	410
Overall Length (mm)	144		Overall Width (mm)	66
Overall Height (mm)	1.1		Battery Type	(1) CR2
Battery Life (hrs @ Medium Brightness)	70		Operating Temperature Range (°С)	-40 to 50
Waterproof	IP68		Fogproof	No
Shockproof	Yes
